Product Detail

Model No.: Type:CNMIPSD-1

Brand Name: Mitsubishi

Product Name: Step Demarcation

Means of Transport: Ocean,Land,Air

Material:: Plastic

Colour:: Yellow and Black

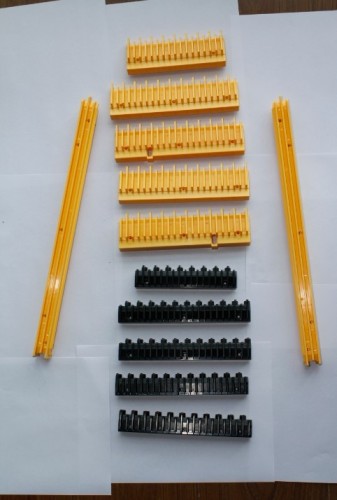

The specification of Escalator Step Demarcation
Product Name: Escalator Step Demarcation
Suitable Brand: Mitsubishi
Material: Plastic

Product Name     :    Escalator Step Demarcation
Suitable Brand    :    Mitsubishi
Material                 :    Plastic
Combination        :   1Left +1Right + 5Front + 5Back For 1000mm Step

Left *1pc

Specification : 410mm(Length)*25.86mm(Width)*25.64mm(Height),4Holes,Yellow

Right *1pc

Specification : 410mm(Length)*25.86mm(Width)*25.64mm(Height), 4Holes , Yellow

Left Of Front -1*1pc

Specification : 198mm(Length)*54mm(Width)*25.54mm(Height) , 9mm(Tooth Pitch)*22Uneven Tooth,3Holes, Yellow

Left Of Front -2*1pc

Specification : 198mm(Length)*54mm(Width)*25.54mm(Height) , 9mm(Tooth Pitch)*22Uneven Tooth,3Holes, Yellow

Center Of Front *1pc

Specification : 153.5mm(Length)*54mm(Width)*25.2mm(Height) , 9mm(Tooth Pitch)*17Uneven Tooth,2Holes, Yellow

Right Of Front -1*1pc

Specification : 198mm(Length)*54mm(Width)*25.2mm(Height) , 9mm(Tooth Pitch)*22Uneven Tooth,3Holes, Yellow

Right Of Front -2*1pc

Specification : 198mm(Length)*54mm(Width)*25.5mm(Height) , 9mm(Tooth Pitch)*22Uneven Tooth ,3Holes, Yellow

Left Of Back *2pcs

Specification : 199mm(Length)*32mm(Width)*24.4mm(Height) , 9mm(Tooth Pitch)*22Uneven Tooth ,3Holes, Black

Center Of Back *1pc

Specification : 153mm(Length)*32mm(Width)*24.4mm(Height) , 9mm(Tooth Pitch)*17Uneven Tooth,2Holes, Black

Right Of Back *2pcs
Specification : 199mm(Length)*32mm(Width)*24.4mm(Height) , 9mm(Tooth Pitch)*22Uneven Tooth ,3Holes, Black

Remarks:All demarcations can be combined by yourselves.
